So your LiDAR processing workflow produces beautiful LAS or LAZ output. You think the files are nothing short of perfect. But they are in LAS 1.2 format and the tender document explicitly requests delivery in the latest LAS 1.4 format. The free and open source las2las module of LAStools – also known as the Swiss Army knife of LiDAR processing – can easily up-convert them.
There are two possible scenarios: (1) The client wants the data as LAS 1.4 files but does not care about which point type is used. (2) The client wants LAS 1.4 and specifically asks for one of the new point types such as point type 6.

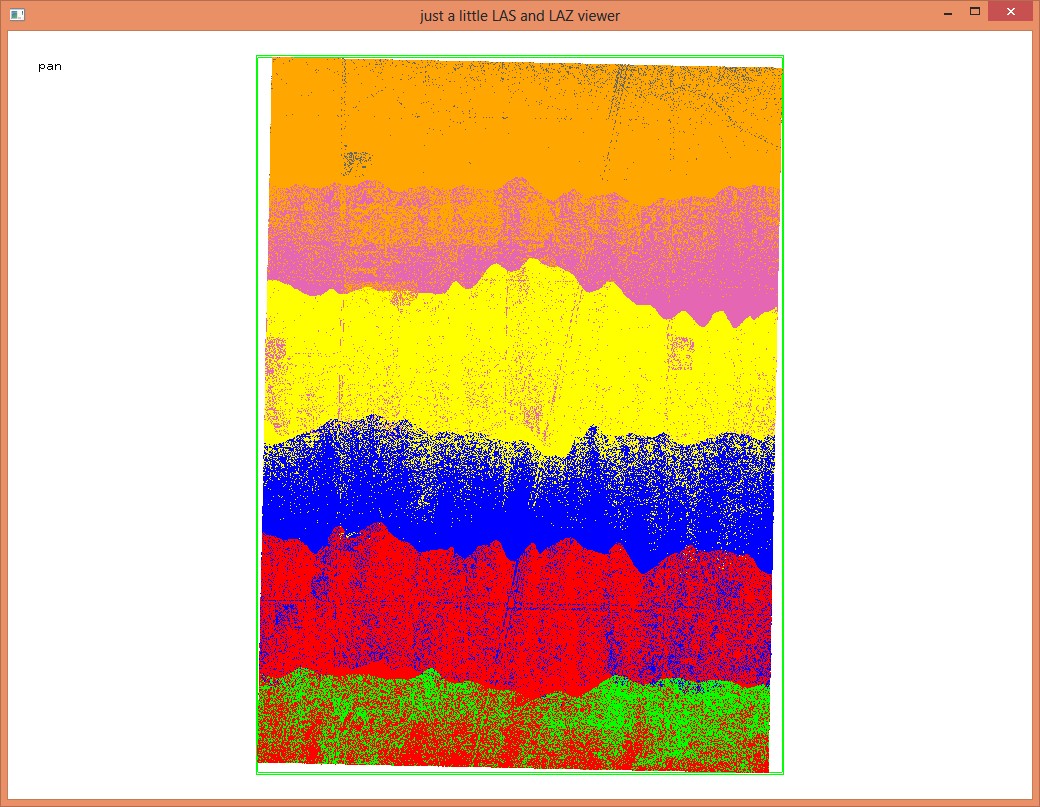

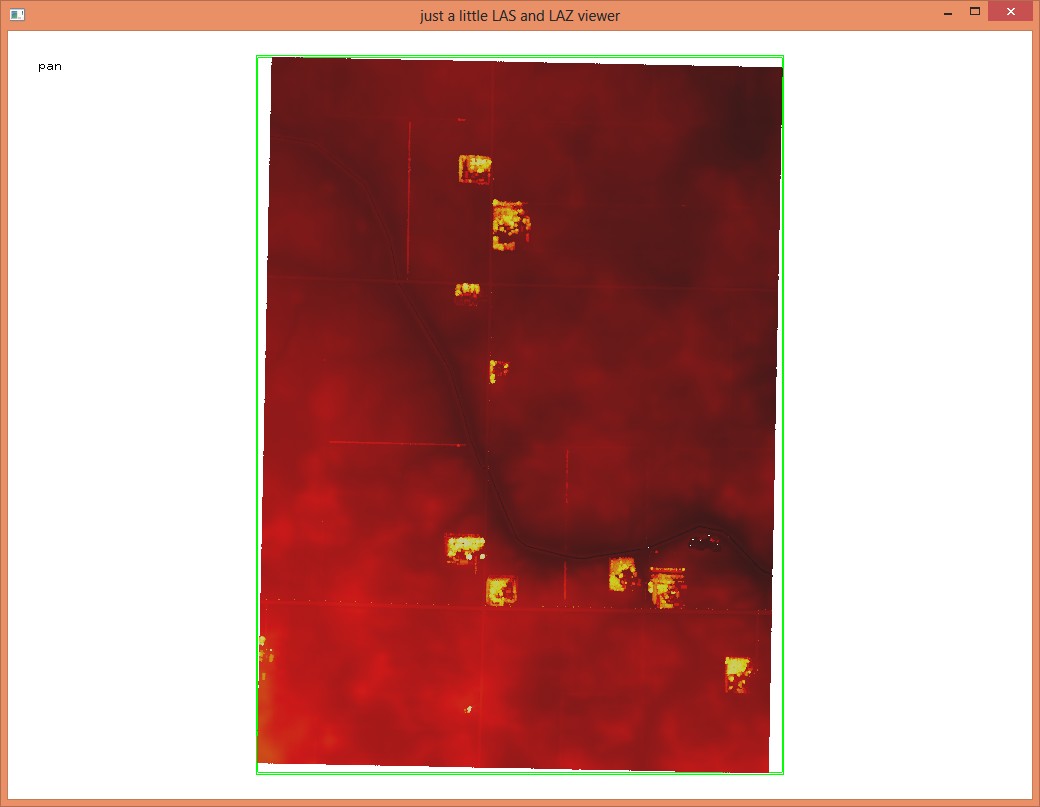

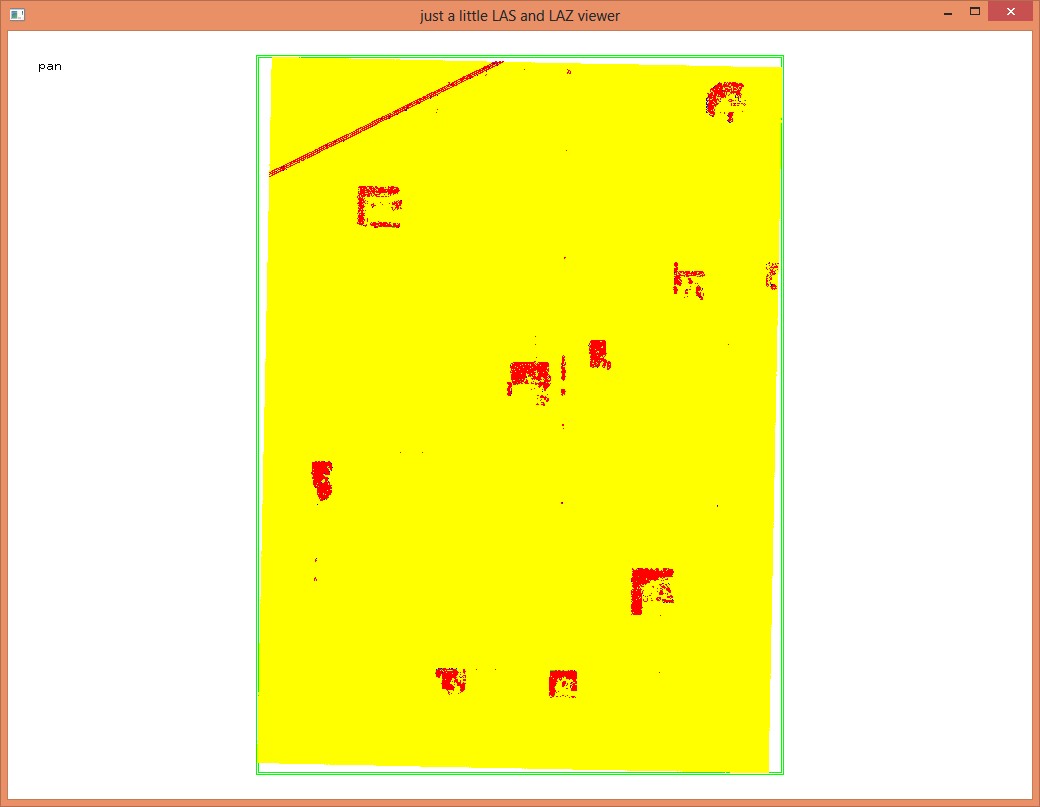

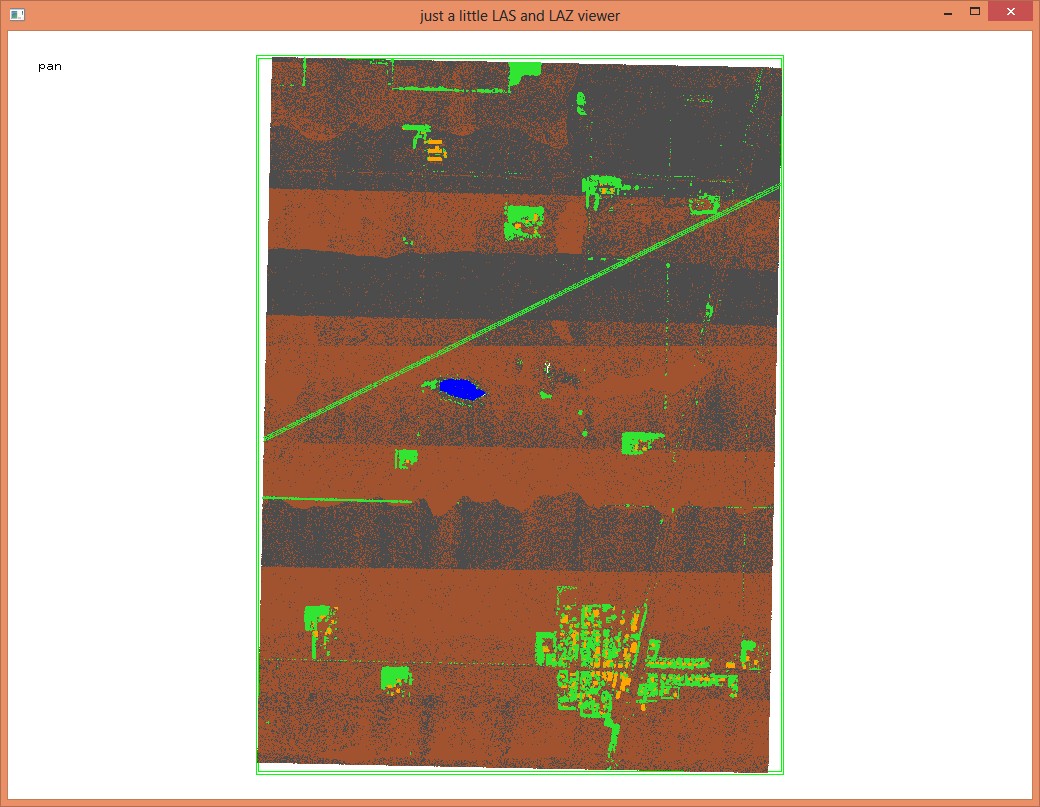

Let us assume you have LAS 1.2 content with point type 1 like these LAZ files from Martin county in Minnesota. Use these four tiles 5126-05-42.laz, 5126-05-43.laz, 5126-06-42.laz, and 5126-06-43.laz to repeat the LAS 1.4 up-conversion we are doing in the following. You will need to use version 160110 of LAStools (or newer) that you can download here.
A report generated with lasinfo shows geo-referencing information stored as GeoTIFF keys in the first VLR. Then there are 10 useless numbers stored in the second VLR that seem left-over from an earlier version of geo-referencing without EPSG codes. The two vendor-specific ‚NIIRS10‘ VLRs should probably be removed unless they are meaningful to you. The LAS header is followed by 1564 user-defined bytes (sometimes used as „padding“) that we can also delete before delivery.
D:\LAStools\bin>lasinfo -i martin\5126-05-42.laz reporting all LAS header entries: file signature: 'LASF' file source ID: 0 global_encoding: 0 project ID GUID data 1-4: E603549E-B74A-4696-3BAD-EA49F643C221 version major.minor: 1.2 system identifier: 'LAStools (c) by Martin Isenburg' generating software: 'lassort (110815) unlicensed' file creation day/year: 119/2011 header size: 227 offset to point data: 2163 number var. length records: 4 point data format: 1 point data record length: 28 number of point records: 13772409 number of points by return: 13440460 240598 78743 12608 0 scale factor x y z: 0.01 0.01 0.01 offset x y z: 0 0 0 min x y z: 361818.33 4855898.31 349.89 max x y z: 364400.98 4859420.79 404.22 variable length header record 1 of 4: reserved 43707 user ID 'LASF_Projection' record ID 34735 length after header 40 description 'by LAStools of Martin Isenburg' GeoKeyDirectoryTag version 1.1.0 number of keys 4 key 1024 tiff_tag_location 0 count 1 value_offset 1 - GTModelTypeGeoKey: ModelTypeProjected key 3072 tiff_tag_location 0 count 1 value_offset 26915 - ProjectedCSTypeGeoKey: NAD83 / UTM 15N key 3076 tiff_tag_location 0 count 1 value_offset 9001 - ProjLinearUnitsGeoKey: Linear_Meter key 4099 tiff_tag_location 0 count 1 value_offset 9001 - VerticalUnitsGeoKey: Linear_Meter variable length header record 2 of 4: reserved 43707 user ID 'LASF_Projection' record ID 34736 length after header 80 description 'GeoTiff double parameters' GeoDoubleParamsTag (number of doubles 10) 500000 0 -93 0.9996 0 1 6.37814e+006 298.257 0 0.0174533 variable length header record 3 of 4: reserved 43707 user ID 'NIIRS10' record ID 1 length after header 26 description 'NIIRS10 Tile Index' variable length header record 4 of 4: reserved 43707 user ID 'NIIRS10' record ID 4 length after header 10 description 'NIIRS10 Timestamp' the header is followed by 1564 user-defined bytes LASzip compression (version 2.1r0 c2 50000): POINT10 2 GPSTIME11 2 reporting minimum and maximum for all LAS point record entries ... X 36181833 36440098 Y 485589831 485942079 Z 34989 40422 intensity 1 4780 return_number 1 4 number_of_returns 1 4 edge_of_flight_line 0 0 scan_direction_flag 0 1 classification 1 10 scan_angle_rank -24 24 user_data 0 32 point_source_ID 5401 8015 gps_time 243852.663596 403514.323142 number of first returns: 13440460 number of intermediate returns: 91408 number of last returns: 13440349 number of single returns: 13199808 overview over number of returns of given pulse: 13199808 323647 198449 50505 0 0 0 histogram of classification of points: 6560507 unclassified (1) 6744481 ground (2) 401464 medium vegetation (4) 55433 building (6) 100 noise (7) 10157 water (9) 267 rail (10)
(1) Create LAS 1.4 files with point type 1
The las2las command shown below turns a folder of LAS 1.2 files into a folder of LAS 1.4 files with option ‚-set_version 1.4‘ without changing the point type. It removes the last three VLRs with option ‚-remove_vlrs_from_to 1 3‘ and the user-defined bytes in the LAS header with option ‚-remove_padding‘ (*). The result is as LAZ with option ‚-olaz‘ and the task is run on up to 4 CPUs in parallel with option ‚-cores 4‘.
(*) option ‚-remove_padding‘ is called ‚-remove_extra‘ in older versions of LAStools.
las2las -i martin/*.laz ^
-remove_vlrs_from_to 1 3 ^
-remove_padding ^
-set_version 1.4 ^
-odir martin_LAS14_pt1 -olaz ^
-cores 4
(2) Create LAS 1.4 files with point type 6
The las2las command shown below turns a folder of LAS 1.2 files into a folder of LAS 1.4 files with option ‚-set_version 1.4‘ and changes the point type from 1 to 6 with option ‚-set_point_type 6‘. As before some VLRs and the header padding is removed. It also adds a second description of the georeferencing information by rewriting the existing information stored as GeoTIFF tags into a properly formatted OGC WKT string with option ‚-set_ogc_wkt‘. Thanks to ESRI’s assault on the LAZ format the output still needs to be in LAS. It can be compressed with laszip in a subsequent step using the ‚LAS 1.4 compatibility mode‚ sponsored by NOAA.
las2las -i martin/*.laz ^
-remove_vlrs_from_to 1 3 ^
-remove_padding ^
-set_version 1.4 ^
-set_point_type 6 ^
-set_ogc_wkt ^
-odir martin_LAS14_pt6 -olas ^
-cores 4
laszip -i martin_LAS14_pt6/*.las -cores 4
Below the output of lasinfo for the „upgraded“ LAS 1.4 file with the OGC WKT string. Some of the key changes have been marked in red.
D:\LAStools\bin>lasinfo -i martin_LAS14_pt6\5126-05-42.las reporting all LAS header entries: file signature: 'LASF' file source ID: 0 global_encoding: 16 project ID GUID data 1-4: E603549E-B74A-4696-3BAD-EA49F643C221 version major.minor: 1.4 system identifier: 'LAStools (c) by rapidlasso GmbH' generating software: 'las2las (version 160110)' file creation day/year: 119/2011 header size: 375 offset to point data: 1135 number var. length records: 2 point data format: 6 point data record length: 30 number of point records: 0 number of points by return: 0 0 0 0 0 scale factor x y z: 0.01 0.01 0.01 offset x y z: 0 0 0 min x y z: 361818.33 4855898.31 349.89 max x y z: 364400.98 4859420.79 404.22 start of waveform data packet record: 0 start of first extended variable length record: 0 number of extended_variable length records: 0 extended number of point records: 13772409 extended number of points by return: 13440460 240598 78743 12608 0 0 0 0 0 0 0 0 0 0 0 variable length header record 1 of 2: reserved 43707 user ID 'LASF_Projection' record ID 34735 length after header 40 description 'by LAStools of Martin Isenburg' GeoKeyDirectoryTag version 1.1.0 number of keys 4 key 1024 tiff_tag_location 0 count 1 value_offset 1 - GTModelTypeGeoKey: ModelTypeProjected key 3072 tiff_tag_location 0 count 1 value_offset 26915 - ProjectedCSTypeGeoKey: NAD83 / UTM 15N key 3076 tiff_tag_location 0 count 1 value_offset 9001 - ProjLinearUnitsGeoKey: Linear_Meter key 4099 tiff_tag_location 0 count 1 value_offset 9001 - VerticalUnitsGeoKey: Linear_Meter variable length header record 2 of 2: reserved 43707 user ID 'LASF_Projection' record ID 2112 length after header 612 description 'by LAStools of rapidlasso GmbH' WKT OGC COORDINATE SYSTEM: PROJCS["NAD83 / UTM 15N",GEOGCS["NAD83",DATUM["North_American_Datum_1983",SPHEROID["GRS 1980",6378137,298.257222101,AUTHORITY["EPSG","7019"]],AUTHORITY["EPSG","6269"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.01745329251994328,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4269"]],PROJECTION["Transverse_Mercator"],PARAMETER["latitude_of_origin",0],PARAMETER["central_meridian",-93],PARAMETER["scale_factor",0.9996],PARAMETER["false_easting",500000],PARAMETER["false_northing",0],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH],AUTHORITY["EPSG","26915"]] reporting minimum and maximum for all LAS point record entries ... X 36181833 36440098 Y 485589831 485942079 Z 34989 40422 intensity 1 4780 return_number 1 4 number_of_returns 1 4 edge_of_flight_line 0 0 scan_direction_flag 0 1 classification 1 10 scan_angle_rank -24 24 user_data 0 32 point_source_ID 5401 8015 gps_time 243852.663596 403514.323142 extended_return_number 1 4 extended_number_of_returns 1 4 extended_classification 1 10 extended_scan_angle -4000 4000 extended_scanner_channel 0 0 number of first returns: 13440460 number of intermediate returns: 91408 number of last returns: 13440349 number of single returns: 13199808 overview over extended number of returns of given pulse: 13199808 323647 198449 50505 0 0 0 0 0 0 0 0 0 0 0 histogram of classification of points: 6560507 unclassified (1) 6744481 ground (2) 401464 medium vegetation (4) 55433 building (6) 100 noise (7) 10157 water (9) 267 rail (10)
Hi Martin,
Following this example I noticed that the number of point records and points by return are not accurately presented.
number of point records: 0
number of points by return: 0 0 0 0 0
Can you advise how this can be rectified in LAS1.4 PDRF 6 files.
Regards,
Alex
That correct. The specification asks for those counters to be zero for point types 6 and higher. If they are not zero it would be an error. For point types 6 and higher these counters need to be zero and the counter values are stored in these extended fields instead:
extended number of point records: 13772409
extended number of points by return: 13440460 240598 78743 12608 0 0 0 0 0 0 0 0 0 0 0
Doing it this way (rather than corrupting the LAS 1.0 through LAS 1.3 style header by inserting new fields) was what the great „laser war of 2011“ between me and Lewis Graham was all about when the new LAS 1.4 specification was written … (-:
Thanks for clearing that up Martin. I though I was doing something wrong here.
Awesome insight as always.
